manufacturing
Factory warehouse
Logistics transportation
Retail inventory
Asset management
Medical care
Faster than the previous generation20%No matterAPPOr web side program, can let the user use more quickly and smoothly.

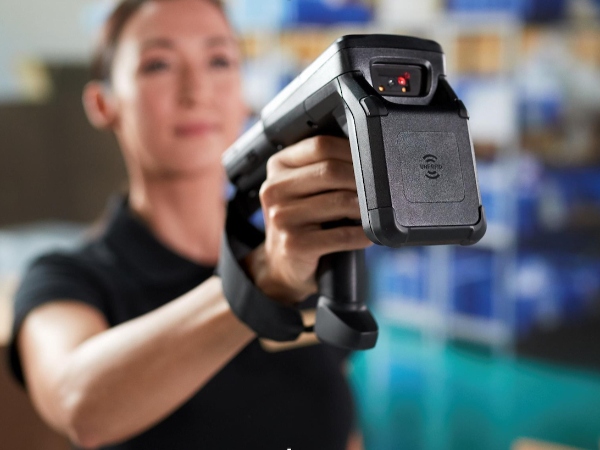

The device has a wide reading Angle, and can calmly cope with a large number of labels and inconsistent label placement angles.
If the scene exists at the same timeRFIDLabels also have ordinary bar code labels, which can be used for data acquisition by two-dimensional code reading heads. If there is oneRFIDThe label can be used because the chip is damagedRFIDThe barcode information on the label surface is read and recorded to the system
The data on the site is transmitted quickly and stably to the background system without being lost halfway, so that the system is more responsive and the program runs more smoothly.
Can supportRFIDThe equipment works continuously for a long time. What if the battery is dying and you don't need to save your data? Zebra3390XRThe device cannot be powered off instantly when the battery is replaced.
What if you need to print after field data collection? Can usePDAThe Bluetooth-connected printer prints directly.

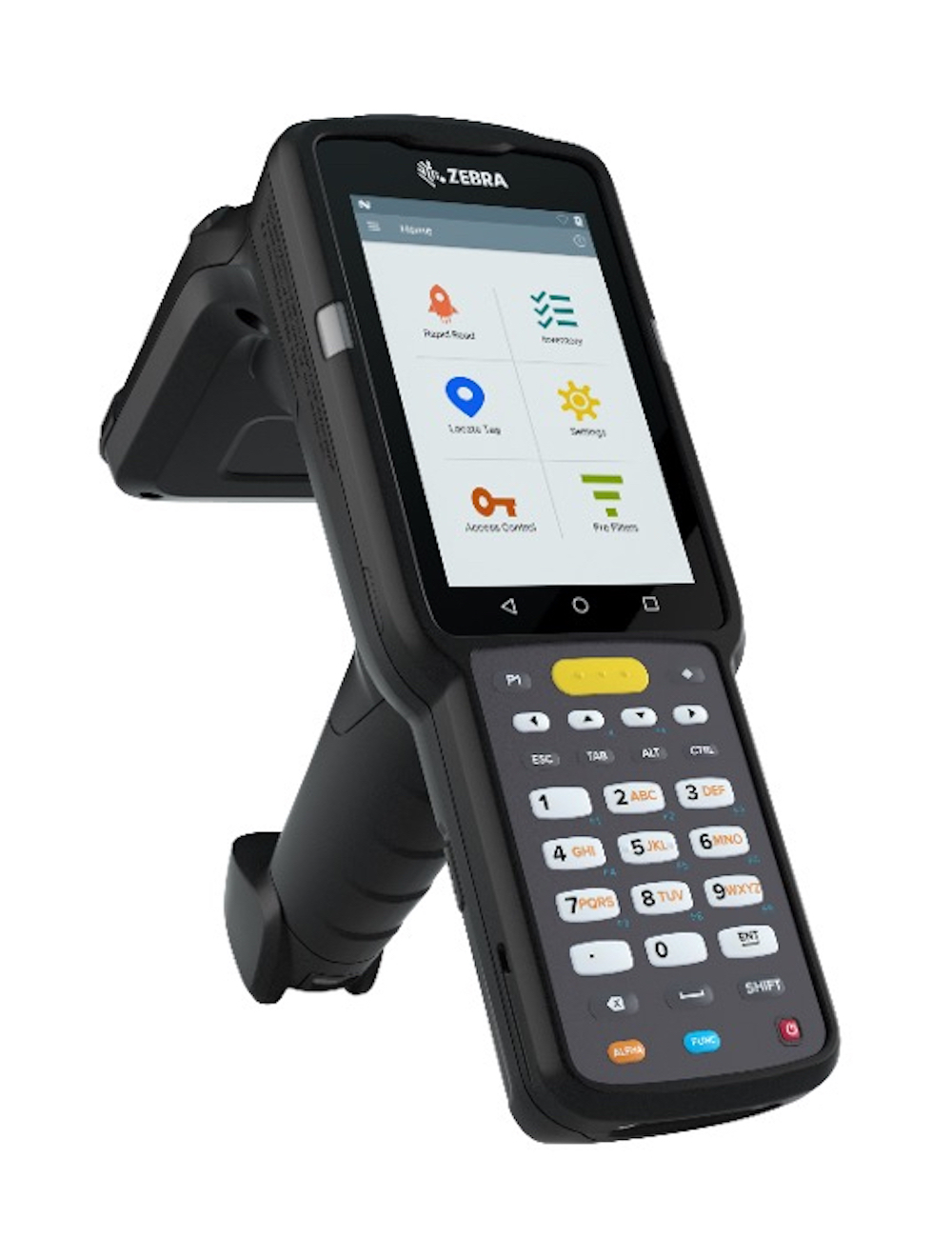

Why have a touch screen, but also a physical keyboard?
Low temperature environment can be entered with gloves, secondly, do not need to find and open the soft keyboard, input more convenient, better operating experience.
| Equipment type | Zebra MC3330XR |
| Operating system | Android 10.0Or higher |
| CPU | Qualcomm SnapdragonTM 660 octa-core ,2.2 GHz |
| Internal memory | 4 GB RAM / 32 GB Flash memory |
| Screen | 4 inches(800x480)WVGA Color touch screen Corning Gorilla with air gap glass touch screen Supports dual input mode for finger, gloved finger and stylus |
| Keyboard | alphanumeric(47key) |
| RFIDStandard | EPC Class 1 Gen;EPC Gen2 V2;ISO- 18000 - 63 |
| RFIDantenna | Circularly polarized antenna, 900+tag/Seconds,0dBmto30dBm |
| Bar code reader | two-dimensionalSE4770Reading head bandLEDcalibrator |
| Wireless network | IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v2/w/mc2 Wi-FiTMauthentication IPv4,IPv6,2x2 MU-MI-MO |
| Bluetooth | 2Grade, Bluetooth V5.0, useBR/EDRAnd low energy Bluetooth(BLE)support |
| NFC | There are |
| Class of protection | IP54 |
| Operating temperature | -20°to 50°/ -4℉ to 122℉ |
| weight | 680g |
| battery | 3.6V,7000mAh the PowerPrecision + battery |
| Expansion slot | User available MicroSD Slot, support 32 GB the SDHC Wagada512GBtheSDXC |
| Keep under warranty | A year |
Equipment selection consultation
Product operation instruction
Provision of equipmentSDK
APPexploit
6 X 8Hour (s)
7 X 24Hour (s)
Equipment upgrade service
Out-of-warranty maintenance service Multiple chargingOptions Single slot base*
Multi-slot base*
Durable cable charger
Shared baseThe same charging base can accommodateMC33Equipment, batteries and moreZebraMobile devices.
Multi-slot battery charger4Trough or20Slot battery chargers can be charged simultaneouslyMC33andMC32battery
Other accessories
The customer has purchased a batch of testing equipment, and in addition to the routine access management of the testing equipment,it is also necessary to regularly verify and maintain the testing equipment, and record the use of each time.
