Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

   Powerful, intelligent and scalableRFIDencoding

  To maintain an edge in today's highly competitive manufacturing or transportation & logistics industries, you need technology solutions that can change as your business evolves.ZT600Series printing combines industrial durability and user friendliness with the ability to adapt to meet future demands - Includes factory or field installationRFIDencoder - To meet your changing needs in the future. With the help ofLink-OS®Application and managed operations and asset visibility services(OVS/AVS)To gain greater visibility into your printing system, plus, take advantage of advancedRFIDPrinting and coding also provide further insight into your entire business.

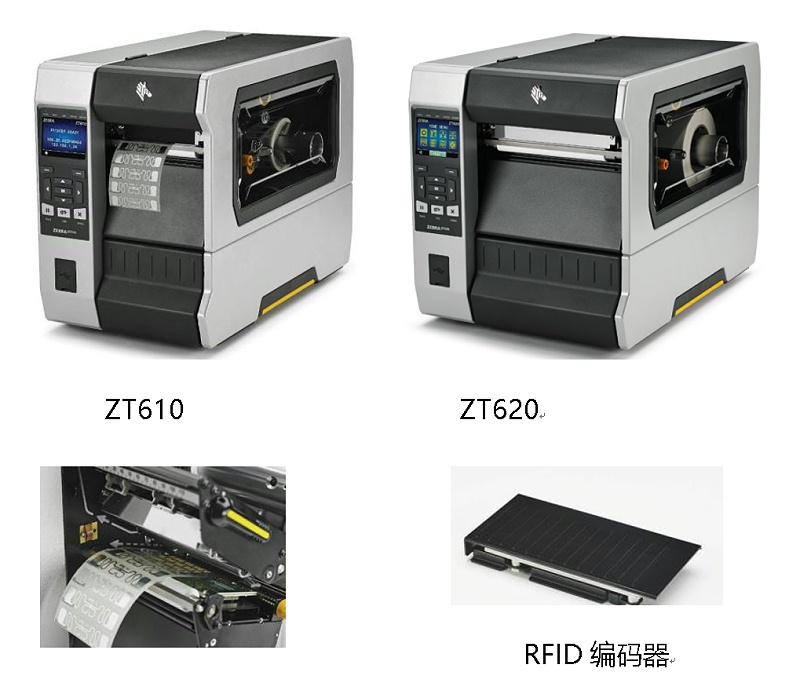

  Zebra ZT610 ZT620 RFIDprinter Make use ofLink-OS®Gain unparalleled visibility and control

  ZebraPrinters should be as intuitive, user-friendly, and integrated as the smartphones and other devices that keep us connected outside of work. With the help ofLink-OSThey can do this. This unique software platform gives you unprecedented real-time visibility and control over your printing system - In the field or remotely, leveraging applications accessible through the cloud simplifies everything - From setup and management to troubleshooting.

  Zebra ZT610 ZT620 RFIDprinter Expand your horizons with industry-leading tracking technology

  Just five minutes on siteZT610andZT620proceedRFIDCoding upgrade. Once supported RFIDThese printers will be able to print and encode labels accurately and efficiently to support today's most advanced item-level tracking applications. Adaptive coding technology brings excellent media flexibility and simplicityRFIDCalibration eliminates complex placement guidelines. Intuitive menus further reduce setup time.ZebratheRFIDThe technology has been certified on six continents to provide operational visibility and business insight covering complex multinational supply chains.

  Zebra ZT610 ZT620 RFIDprinter Ensures reliable use throughout the day, even in the most demanding environments

  Under the most challenging industrial conditions,ZT600Series printers continue to deliver excellent print quality and virtually eliminate downtime caused by printer failure. With a durable all-metal design, these devices can withstand extreme temperatures, dust, debris, moisture and other harsh conditions. Guided guidance and feedback eliminate common errors, reduce manual adjustments, and help achieve highly consistent printing results. High-quality printing mechanisms and internal components enable this range of printers to deliver outstanding print quality and speed in a wide range of applications. The field-installed full-width knife cutter is equipped with a connector and is ideal for clothing signage applications.

  Zebra ZT610 ZT620 RFIDprinter reduceRFIDMedium cost

  The spacing of signage is often incredibly dense, at mostRFIDIn the chip, bar code distance(between Distance (from) is0.6inches/16Millimeters or even smaller -- Smaller than other printers/The distance that the encoder can print Leave. Because the inlays are more closely spaced, label suppliers can use less material, which reduces the cost per label, requires fewer media reel changes, and is able to provide you with a faster printer/Encoder throughput capacity.

  Zebra ZT610 ZT620 RFIDprinter Customize your configuration with flexible connectivity options

  Make system setup, integration, and updates easier with almost every modern connectivity option. Standard connections include serial,USB, Gigabit Ethernet card,USB HostandBluetooth®, optional serial,802.11a/c,Applicator Port(label machine port),IPv6andBTLEFeatures. You also get two available media slots for non-standard connection options to design failover connections and configurations for future protocols.

  Zebra ZT610 ZT620 RFIDprinter Increase efficiency with user-friendly design

  ZT600Every design detail of the series is designed to make it more efficient for customers. intuitionalLCDThe interface simplifies everyday use. Media and carbon strip paths for color lighting simplify routine maintenance. The adjustable media width and pressure switching position make it easy to meet the needs of more applications. Built-in sensors, diagnostics, and help resources enable you to solve problems on your own, without the need for support.

  Zebra ZT610 ZT620 RFIDprinter   Printer specification

  RFIDFeatures:

  • Support for signage compatible with the following protocols:UHF EPC Gen2 V2,ISO/IEC 18000-63and RAIN RFIDagreement

  • integratedRFIDThe system can be upgraded by the user on site, suitable for4inch-sum6Inch model

  • Adaptive coding technology automatically selects the best coding Settings

  • Supports serialization based on multi-vendor chips that meet industry standards(MCS)

  • Support pair compatibilityATA Spec 2000Block of user memory is permanently locked(block permalocking)

  • Make use ofRFIDJob monitoring tools for excellent tracking performance

  Standard features:

  • Printing method: thermal transfer and thermal printing

  • Body design: Collapsible metal media cover with metal frame and large clear window

  • Side-mounted consumable paths simplify media and carbon strip installation

  • adoptElement Energy™ Equalizer (E3) The technology's thin film printhead helps achieve outstanding print quality

  • Communication:USB2.0, high speed,RS-232Serial, Gigabit Ethernet,Bluetooth4.0

  • The highly intuitive color display turns red when the printer is in an error state, allowing the operator to determine the printer's status from a distance

  • The simplified icon menu navigation system classifies Settings into different logical function groups

  Resolution:203 dpi/Per millimeter8A dot,300 dpi/Per millimeter12A point (optional),600 dpi /Per millimeter24A point (onlyZT610Optional)

  Memory:1GB RAMMemory,2GBOnboard linear flash memory

  Maximum print width:ZT610:4.09inches/104millimeterZT620:6.6inches/168millimeter

  Maximum print speed:ZT610:14 ips /Per second356millimeterZT620:12 ips /Per second305millimeter

  Zebra ZT610 ZT620 RFIDprinter Medium width:

  ZT610

  • 1.00inches/ 25.4Mm to4.5inches/114millimeter Paper tearing/Paper cutter

  • 1.00inches/ 25.4Mm to4.25inches/108millimeter Peel off/backrolling

  ZT620

  • 2.00inches/ 51Mm to7.0inches/ 178millimeter Paper tearing/Paper cutter

  • 2.00inches/ 51Mm to6.75inches/ 171millimeter Peel off/backrolling

  Maximum volume size: outside diameter8.0inches/203Mm, core diameter3inches/76millimeter

  Media type: continuous paper, die-cut paper, label paper, black label paper

  Working temperature:

  • Heat transfer printing:40ºFto104ºF/5ºCto40ºC

  • Heat Sensitive:32ºFto104ºF/0ºCto40ºC

  Working humidity:20%to95%(no condensation)

  Zebra ZT610 ZT620 RFIDprinter Application scenario

  With the need of all walks of life to improve management and production efficiency, the application of bar code printers is more and more extensive, and it also plays an important role in the entire operation of the enterprise.

  Bar code printer is the most widely used in the manufacturing industry, and it is an essential equipment to assist and improve the efficiency of enterprise production management. Whether it is heavy industry and light industry, the selection of the type of barcode printer needs to be judged according to the production scale and capacity, as well as the workshop environment, generally speaking, because the manufacturing industry printing volume, printing time is long, the printing speed is high, it is recommended to use industrial-grade barcode printers, such asZEBRA ZT600The series will meet the various needs of the manufacturing industry for print quality, print volume, print speed and stable durability.

  Application case

  Suzhou a soft drink packaging company usedZEBRA   ZT610RprintRFIDtagTo realize the automatic management of goods entering and leaving the warehouse.
