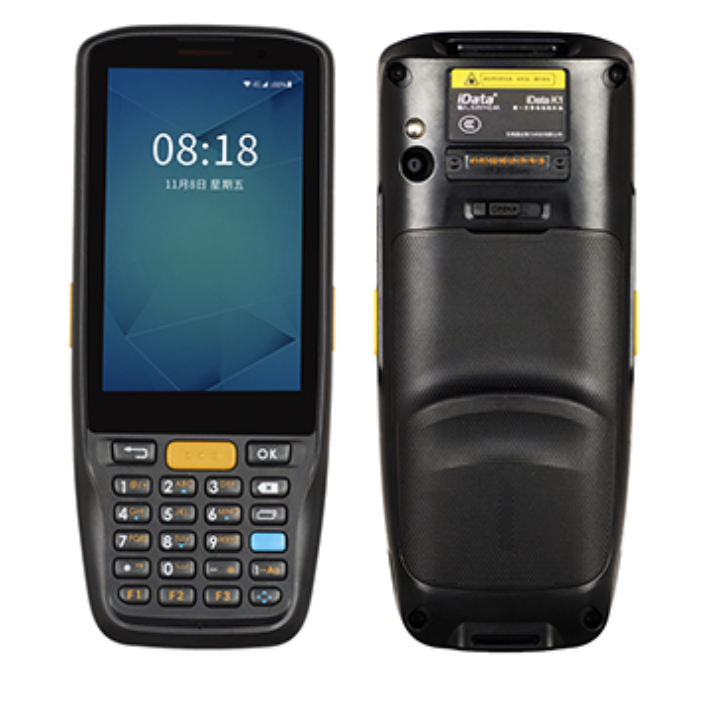

IData K1S barcode scanning gun mobile intelligent terminal

Released Date: Jul 12,2022 Article Source: Suzhou Zhiguan Yisheng Information Technology Co., LTD

This kindIDATA K1SIt is a scanning gun designed specifically for enterprises in complex environments.IData K1S Bar code scanner Sweep faster, decode faster50%; Sweep long enough,AIIntelligent dimming&Power saving mode; Sweep far, wider reading range. true5GStandard fast roaming, stable connection, zero delay, no drop; High performance5G PAAmplifiers,Wi-FiMaximum performance to meet the needs of faster transfer rates in complex environments.

  Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.


  Made for complex scenes

  This kindIDATA K1SIt is a scanning gun designed specifically for enterprises in complex environments.



IDATA K1S Bar code scanner

  IData K1S Bar code scanner Fast scan code

  IData K1S Bar code scanner Sweep faster, decode faster50%; Sweep long enough,AIIntelligent dimming&Power saving mode; Sweep far, wider reading range.


  IData K1S Bar code scanner strongWi-Fi

  true5GStandard fast roaming, stable connection, zero delay, no drop;

  High performance5G PAAmplifiers,Wi-FiMaximum performance to meet the needs of faster transfer rates in complex environments.


  IData K1S Bar code scanner Really durable

  Android9.0+equip4400mAhLarge battery+ 9V2A(18W) Fast charge+Bluetooth5.0Easy to run for a whole day;

  IP65Class of protection+1.5Meter-cement floor resists falls+Waterproof, safe, reliable and durable.


  IData K1S Bar code scanner Ergonomic design

  4Inch screen + IMDWear-resistant full keyboard combination, comfortable grip, lasting hold without fatigue;

  The right side22Individual function key+The right side/Lateral common3The ergonomic design of a scanning key makes it easy for users to operate.


  IData K1S Bar code scanner System configuration

  processor 8nuclear2.0GHzHigh performance processor


 IData K1S Bar code scanner Operating system Android 9.0

  Internal memory (ROM+RAM)16GB+2GB, optional32GB+3GB/64GB+4GB/128GB+6GB1Expansion slot Micro SD Slot (maximum support256GB)

  Display screen   4Inch, resolution800*480 IPS

  IData K1S Bar code scanner Touch screen Industrial capacitive screen (support touch with gloves, wet hand operation)


  IData K1S Bar code scanner camera

  Standard configuration800Million (Optional1300Million) Rear camera, autofocus, supportPDAF, highlight the flash Flash lamp800mAHigh light flash


  IData K1S Bar code scanner Keyboard

  Backlit white, scanned window glass Mitsubishi composite sheet, keyboardIMDanti-wear26Key, anti-wear, internal light industryIMDKeyboard

  battery  3.8V4400 mAh Lithium polymer safe battery, backup support (some models support)


  Audio frequency  Built-in microphone network

  Tips Scan promptLED/Charging tipsLED/Vibration cue

  Vibrating motor Built-in programmable vibration motor


  IData K1S Bar code scanner Structural parameter

  dimension (LxWxD)168mm×71mm×26mm

  weight 270G (including battery)


  IData K1S Bar code scanner Communication transmission

  Wireless local area network

  Bluetooth Bluetooth 5.0 LEI

  GPS

  sensor


  IData K1S Bar code scanner Use environment

  Development tool Android SDK+JDK+Eclipsel

  Support language Javal

  Operating temperature -20℃~60℃

  Storage temperature -40℃~60℃(Battery included)-40℃~70℃(Battery not included)

  humidness 0~95%(no condensation)

  Drop specification More than once1.5mDrop cement concrete floor

 IData K1S Bar code scanner Class of protection 1IP65

  Electrostatic discharge 15kVAir discharge,±8kVContact electricity; Anti-surge designNFC(Optional)

  frequency 13.56 MHz1

  Read distance 30mmWithin the

  Communication protocol ISO14443A/14443B/156931

  NFC(Optional) Frequency13.56 MHz1Read distance30mmWithin the

  Communication protocol ISO14443A/14443B/15693

  input/Output interface

  USB port1A,2pinCharging interface Type-C, wear headphones,OTGInterface support


  IData K1S Bar code scanner Peripheral equipment and accessories

  Standard fittings

  Lithium polymer battery, power adapter, strap, hand cord, bottom charging card clip,USBData cable1Optional accessories four-charge battery, handle, single charger
