The FX9600 RFID fixed device reads the tag through the serial port

Released Date: Jan 12,2022 Article Source: Suzhou Zhiguan Yisheng Information Technology Co., LTD

FX9600 RFIDThe stationary reads the label through the serial port. Because to read data through the serial port, you must first enter the configuration page through the network port and click"Connect"Button, soFX9600 RFIDAfter the fixed serial port is configured, the configuration page can be closed but cannot be shut down. Once it is shut down, you must re-enter the configuration page by clicking"Connect"Can be used normally.

Suzhou Zhiguan Yisheng Information Technology Co., Ltd. has been committed to the Internet of Things since its inceptionRFIDResearch and implementation of industry application technology. For years of service1000+Home to all types of customers.

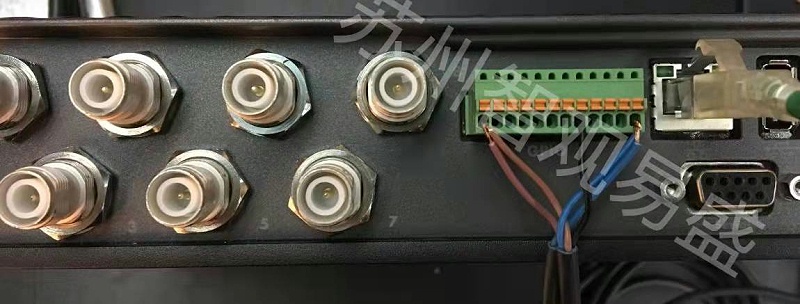

willFX9600 RFIDstationary Connect the serial port and network port to the computer, and connect the sensor to the following figureGPIOMouth:

FX9600socket

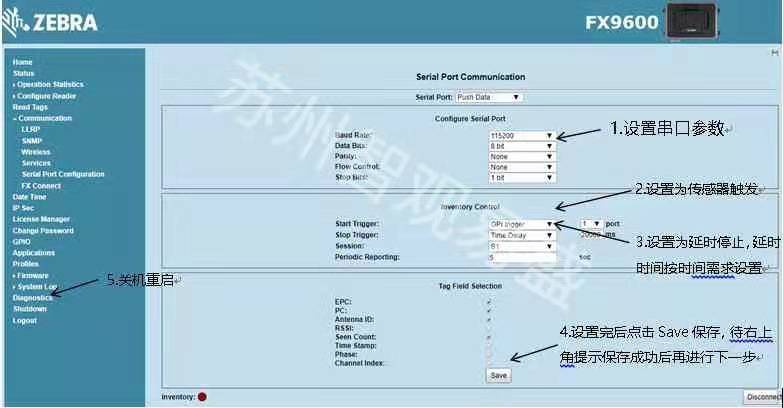

enterFX9600 RFIDstationary On the configuration page, related Settings are subject to the following figure:

9600Display configuration page

After the restart, go to the configuration page again and check whether the preceding options are set successfully. If the Settings are successful, you can click on the bottom right corner of the page"Connect"Button, willFX9600 RFIDThe stationary is connected to the computer via a serial port.

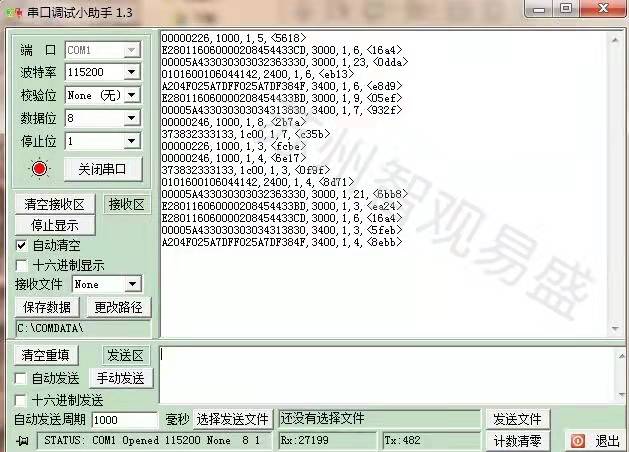

Open the serial debugging assistant, trigger the sensor readRFIDThe information is as follows:

FX9600readRFIDMessage

Attention:Because to read data through the serial port, you must first enter the configuration page through the network port and click"Connect"Button, soFX9600 RFIDstationaryAfter the serial port is configured, you can close the configuration page but not shut down. Once it is shut down, you must re-enter the configuration page and click"Connect"Can be used normally.

moreRFIDFor products and solutions, please visit our website( www.ivesiot.com )Or online customer service (13771886689) Consultation
